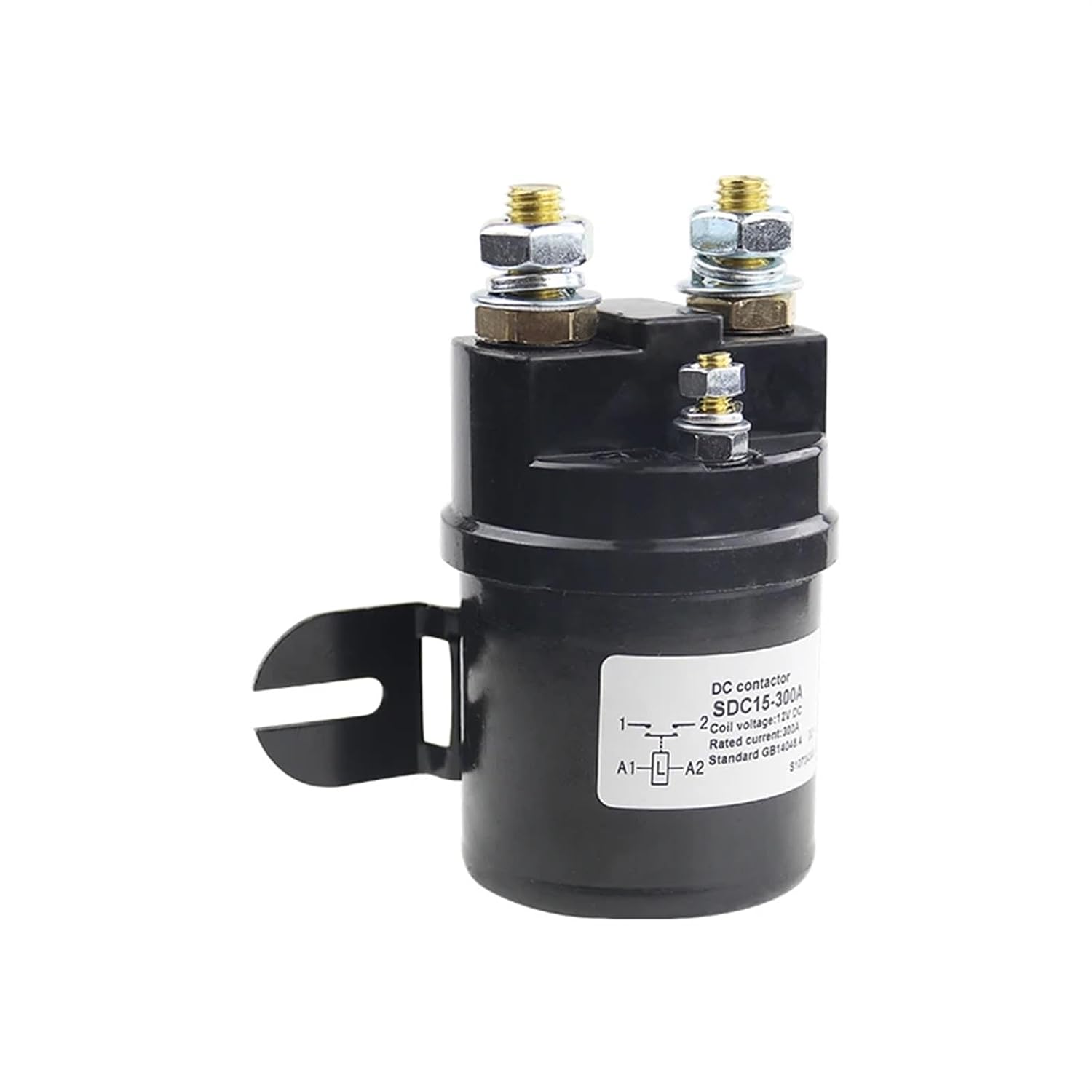

SDC15-300A DC Contactor SDC15-100A 200A 300A for Electric Pump Battery Car from SPST 1NO BMC Material 6/12/24/36/48/60/72/84/120V 1Pcs(300A,1NO_48V)

Circuit Breaker PanelsSpecificationProduct name: DC contactorModel: SDC15-300AContact form: 1 NOCoil Rated voltage(DC V) 6V, 12V, 24V, 36V, 48V, 60V, 72V, 84V, 120V, 150V, 220V etc.Contact voltage(DC V): 80VRated load current of contact 48V circuit (A): 300ATypical voltage drop across contacts per 100A: 80mVthe cooling pull-in voltage at (20±5) (V): 70%the cooling drop-out voltage at (20±5)(V):35%,5% Drop-out time(n/o contacts to open): 30msPull-in time (n/o contacts to close): 5msconnect the maximum contact bounce time: 10msDisconnect the maximum contact bounce time: 3msInsulation Resistance: 20MElectric strength to resist: 50Hz/60Hz 1000VAC 1minuteTypical fault currents which can be ruptured 800A/5ms at 48V DCCoil power (W): 18-30Temperature rise of coil (K): 85Temperature rise on outgoing terminal (K): 65Electric life: 20000 timesMechanical life: 300 thousand timesWork specification: IntermittentContact material :AgCdOLoad terminal type: M8 RoseCoil terminal type: M5 Rose or 6.3mm spade terminalsPackage Included1 × DC Contactor Model Number : SDC15Main Circuit Rating Current : 300AMain Circuit Rating Voltage : 120VElectricity Type : DC Contact form : 1NOCoil Rated voltage : 12V, 24V, 36V, 48V, 60V, 72V, 84V, 120VScope of application : suitable for electric control such as electric pumps
