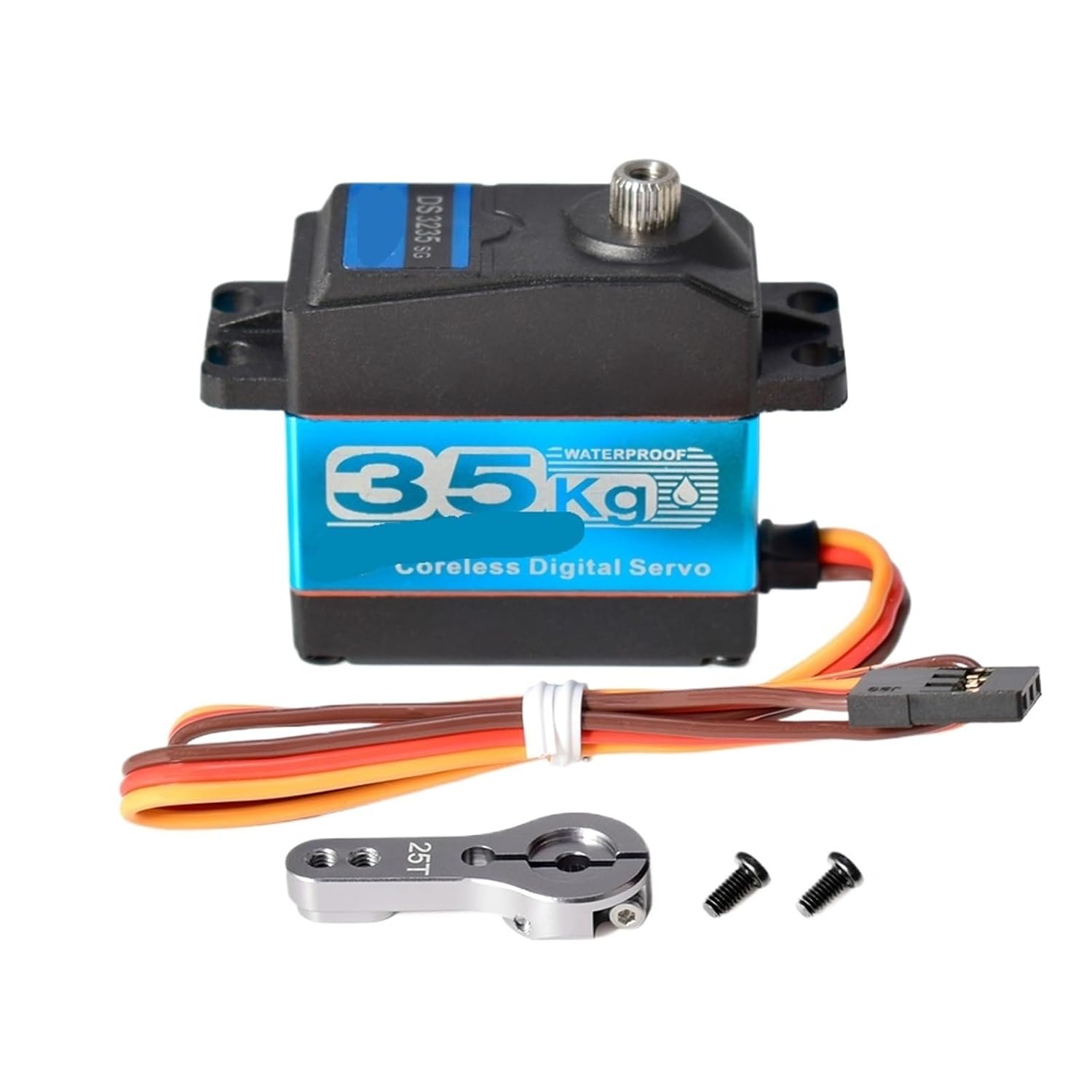

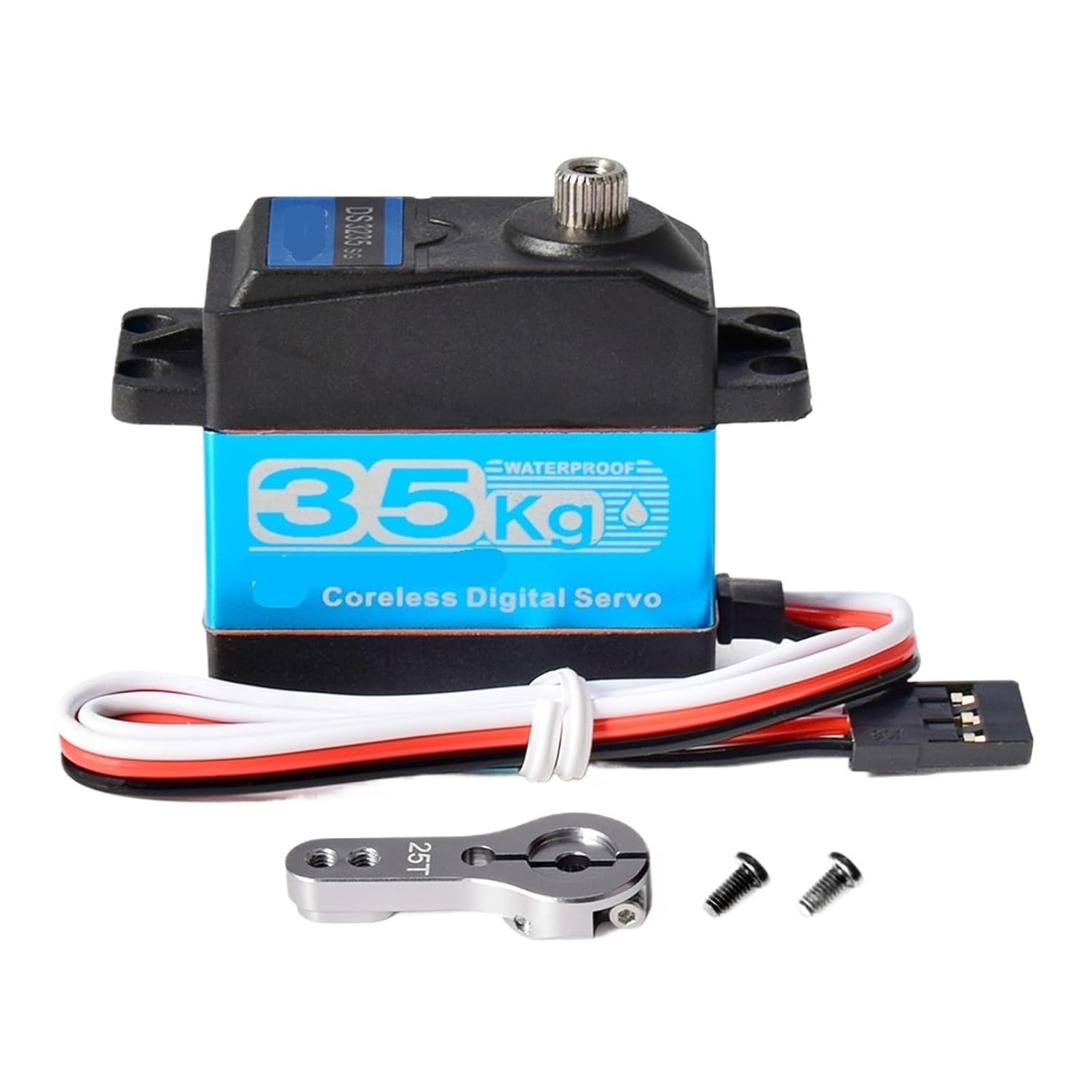

Waterproof Remote Control servo DS3218 20KG DS3225 25KG DS3235 35KG 180/270 Degrees Suitable for 1/8 1/10 1/12 Metal Gear Digital servo(DS3218MG pro 270)
Product details
| Management number | 220703906 | Release Date | 2026/05/03 | List Price | US$18.20 | Model Number | 220703906 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Servo GearsSpecification:Model: DS3218MG Product Name: DS3218MG Digital ServoRotation angle: 180 degrees, 270 degrees optionalDead zone: 3 secondsWorking voltage: 4.8V~6.8VWorking speed (5V): 0.16 seconds/60° when no loadOperating speed (6.8V): 0.14 seconds/60° when no loadStall Torque (5V): 19 kg/cm (263.8 oz/in)Stall Torque (6.8V): 21.5 kg/cm (298.5 oz/in)Motor type: Carbon brush motorGear Type: Copper and AluminumWorking frequency 1520s 333hzSize: 405*40*20mmWeight: 60 gModel: DS3218MG pro Product Name: DS3218MG pro digital servoRotation angle: 180 degrees, 270 degrees optionalDead zone: 3 secondsWorking voltage: 5.0V~6.8VWorking speed (5V): 0.12 seconds/60° when no loadWorking speed (6.8V): 0.09 seconds/60° without loadStall torque (5V): 21 kg/cmStall torque (6.8V): 23.5 kg/cmMotor type: Carbon brush motorGear Type: Copper and AluminumWorking frequency 1520s 333hzSize: 405*40*20mmWeight: 60 gModel: DS3225MG Product Name: DS3225MG Digital ServoRotation angle: 180 degrees, 270 degrees optionalDead zone: 3 secondsWorking voltage: 4.8V~6.8VWorking speed (5V): 0.15 seconds/60° when no loadWorking speed (6.8V): 0.13 seconds/60° when no loadStall Torque (5V): 21 kg/cm (263.8 oz/in)Stall Torque (6.8V): 24.5 kg/cm (298.5 oz/in)Motor type: DC motorGear Type: Copper and AluminumWorking frequency 1520s 333hzDimensions 405 * 40 * 20 mm (1.58 x 0.79 x 1.60 in)Weight: 60 gModel: DS3235MG Product Name: DS3235MG Digital ServoRotation angle: 180 degrees, 270 degrees optionalWorking voltage range: 5-7.4V Working speed (no load): 0.13 seconds/60 degrees @5.0VWorking speed (no load): 0.12 seconds/60 degrees @ 6.0VRunning speed (no load): 0.11 seconds/60 degrees @ 7.4VStall torque (locked): 29kg/cm @5.0VStall torque (locked): 32kg/cm @6.0VStall torque (locked): 35kg/cm @7.4VStall current (locked): 1.9A @5.0VStall current (when locked): 2.1 A@6.0VStall current (when locked): 2.3A@7.4VItem: DS3235 35KG centerless cup stainless steel gear waterproof digital servoWorking voltage: 5~7.4 volts DCDeath: 3s/2sMotor type: Coreless motorGear Type: Copper and Aluminum Stainless Steel AluminumWorking frequency 50333HzDimensions 40 x 20 x 385 mm (1.58 x 0.79 x 1.50 in)Weight: 60 g (2.12 oz)Package Included:1 x Digital Servo1 x 25T Metal Servo Arm
- Servo Gears
| Size | DS3218MG pro 270 |
|---|---|
| Color | One Color |
| Brand Name | WNDIZPHA |
| Manufacturer | WNDIZPHA |
| Model Number | WNDIZPHA |
| Item Dimensions | 0.39 x 0.39 x 0.39 inches |
| Is Assembly Required | No |
| Manufacturer Part Number | WNDIZPHA |
